Philippi - Automatic Charger - ACE12/40 - 12V, max. 40A
€597.40*
% €629.00* (5.02% saved vs. recommended price)Available, delivery time: 1 Tag
Product number:
1962802
Product information "Philippi - Automatic Charger - ACE12/40 - 12V, max. 40A"
Chargers ACE
The new battery charger ACE is the start of a completely new developed model generation ACE. The new models are available for most modern switching power supply technology in terms of efficiency and effectiveness. This allowed minimizes self-heating of devices and cooling requirements are reduced. All devices up to an output current of 40A at 12V and 20A at 24V fanless and therefore largely silent, which represents a large gain in comfort, especially in the operation at night in bunks close. A great advantage over other battery chargers is that the full capacity is discharged up to an ambient temperature of 55 ° C. And so it is in the Mediterranean area at any time the full power available.

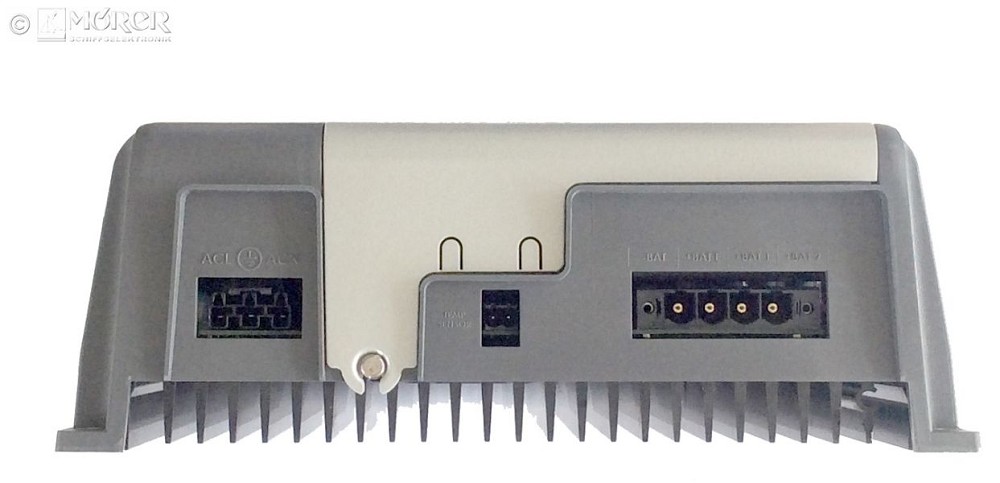

The devices are optimized with regard to moisture protection and cooling for wall mounting, which is on board the preferred mounting method. All connections are pluggable and facilitate installation even in hard to reach places.
The charging characteristic can be selected from the unit via internal DIP switch from 9 different characteristics. There is also a Winterlager- and a power supply mode. Added the new refresh function is used for battery maintenance.
A built-in device output power distributor allows connection of up to 3 groups of batteries.
A power and a two-color charge indicator show the device status, an integrated color display is optionally available from ACE 12/60 and 24/30 standard.
Connection for a remote display screen. P-BUS interface from ACE 12/60 and 24/30, 12/25 retrofit for ACE, ACE 12/40 and ACE24 / 20 possible.
Connection for a temperature sensor Temp-BT (included).
Worldwide use by input voltage range 110-230 V
Charging current: 40 A
Voltage: 12 V
Charging characteristic: 4-stage, adjustable - Default value: 14.4 V / V 13.8, Winter storage mode, power supply mode, refresh function
Battery types: 7 different charging programs for wet, lead-calcium -, GEL, AGM - batteries, lithium-battery systems
Rec. Battery capacity: 200 - 400 Ah
Input voltage range: 90 - 265 VAC
Frequency: 47 - 65 Hz
Efficiency: 90% typical
Power consumption: 230/115 V 2.7 / 5.6 A
Weight: 3.5 kg
Dimensions L x W x H: 298 x 195 x 106 mm
Cooling: Convection
cooling: convection
kühlun: Fan (<50 dBA)
Reported operating temperature: - 20 ° C - 60 ° C, from 55 ° C to reduce power
Protection: IP 22
Electric protection: against short circuit and overvoltage (fuse) in all models
Connectivity: FACE, PSM via interface ACE PBUS FACE
The new battery charger ACE is the start of a completely new developed model generation ACE. The new models are available for most modern switching power supply technology in terms of efficiency and effectiveness. This allowed minimizes self-heating of devices and cooling requirements are reduced. All devices up to an output current of 40A at 12V and 20A at 24V fanless and therefore largely silent, which represents a large gain in comfort, especially in the operation at night in bunks close. A great advantage over other battery chargers is that the full capacity is discharged up to an ambient temperature of 55 ° C. And so it is in the Mediterranean area at any time the full power available.
The devices are optimized with regard to moisture protection and cooling for wall mounting, which is on board the preferred mounting method. All connections are pluggable and facilitate installation even in hard to reach places.
The charging characteristic can be selected from the unit via internal DIP switch from 9 different characteristics. There is also a Winterlager- and a power supply mode. Added the new refresh function is used for battery maintenance.
A built-in device output power distributor allows connection of up to 3 groups of batteries.
A power and a two-color charge indicator show the device status, an integrated color display is optionally available from ACE 12/60 and 24/30 standard.
Connection for a remote display screen. P-BUS interface from ACE 12/60 and 24/30, 12/25 retrofit for ACE, ACE 12/40 and ACE24 / 20 possible.
Connection for a temperature sensor Temp-BT (included).
Worldwide use by input voltage range 110-230 V
Charging current: 40 A
Voltage: 12 V
Charging characteristic: 4-stage, adjustable - Default value: 14.4 V / V 13.8, Winter storage mode, power supply mode, refresh function
Battery types: 7 different charging programs for wet, lead-calcium -, GEL, AGM - batteries, lithium-battery systems
Rec. Battery capacity: 200 - 400 Ah
Input voltage range: 90 - 265 VAC
Frequency: 47 - 65 Hz
Efficiency: 90% typical
Power consumption: 230/115 V 2.7 / 5.6 A
Weight: 3.5 kg
Dimensions L x W x H: 298 x 195 x 106 mm
Cooling: Convection
cooling: convection
kühlun: Fan (<50 dBA)
Reported operating temperature: - 20 ° C - 60 ° C, from 55 ° C to reduce power
Protection: IP 22
Electric protection: against short circuit and overvoltage (fuse) in all models
Connectivity: FACE, PSM via interface ACE PBUS FACE
Herstellernummer: 0 4512 4013
