AIS Transponder von Weatherdock, Watcheye und Navico (B&G, Simrad)

Reduce the risk of collisions with the NAIS-500.AIS is a new type of security equipment that helps you to fore and be seen at sea.AIS focuses on all ships near you and helps to reduce the risk of collision through data exchange between the ships.-Black box class-B AIS transponder (AIS transmitter/recipient) system-Nmea-20000 and NMEA-0183 (high speed) interface, USB interface-Multiplex input for grinding and using NMEA0183 Data with 4800 Baud-USB port for programming the device and connecting a navigation PC-It supply 9.6 - 31.2V DC, electricity consumption 170mA @ 12V-Dimensions (LXBXH): 152 x 100x 52mm, housing waterproof according to IPX7An ais transmission and reception antenna, B.Z.W. An antenna splinter, a GPS antenna (GPS-500) and, if there is still no NMEA2000 installation, an NMEA2000 starter kit.

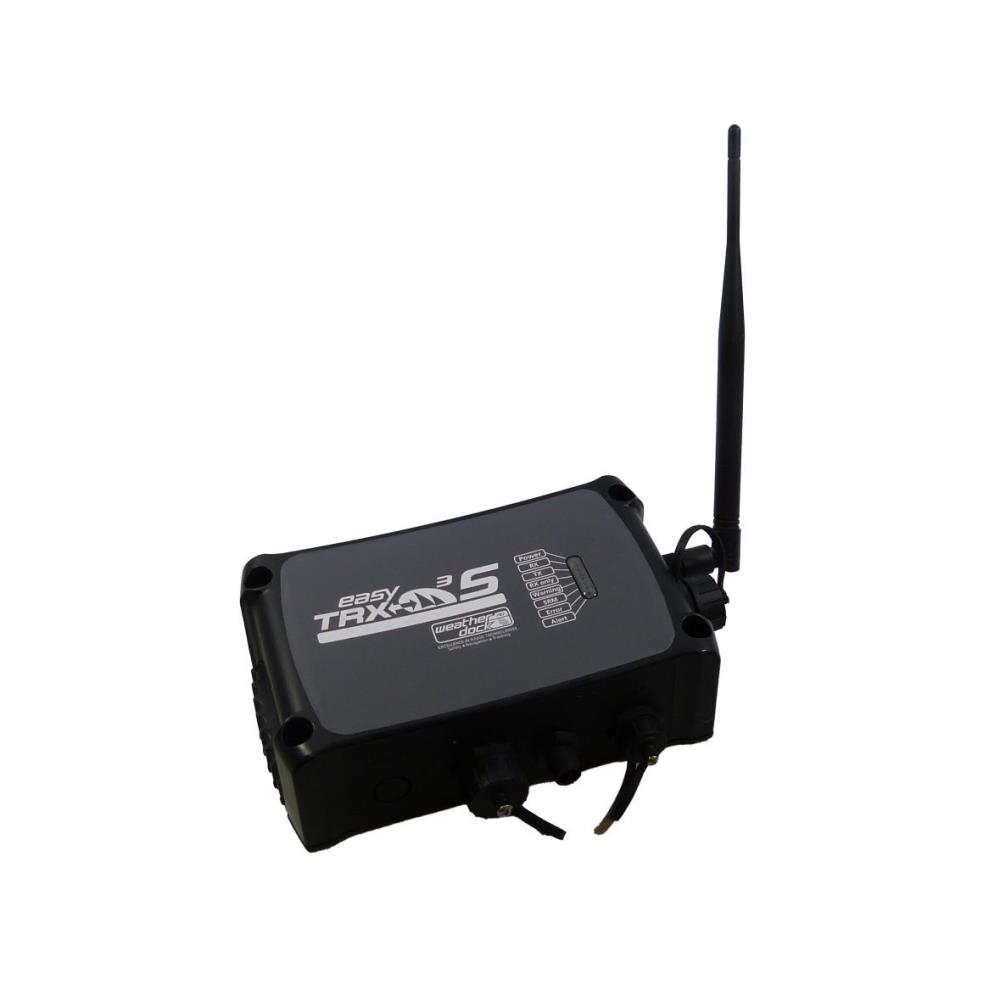

A20000SOTDMA AIS transmitter / receiver Class B with integrated antenna splitter, internal GPS antenna and NMEA2000Highlights• AIS Class B SOTDMA method• 5 Watt radiated power• Higher transmission rate (speed dependent)• Integrated antenna splitter• Integrated GPS antenna• NMEA2000 data output• Handy, robust and waterproof housing• configuration of the device with USB power supply possible• Reading the internal data memory with USB power supply possible• 1-channel transmitter• 2-channel receiver to simultaneously and permanent monitoring of the two AIS frequencies• Channel Sensitivity: better than -112dBmThe new easyTRX3 with SOTDMA presents the next generation of Weatherdock AIS Class B transceiver.With a stronger transmission power of 5 watts and higher transmission rates in AIS protocols your navigation is improved while increasing your safety on board.will see even better seen and!The AIS Class B transceiver SOTDMA easyTRX3 includes a transmitter and AIS-2 AIS receiver to be able to receive and permanently parallel the transmitted signals on the two AIS AIS frequencies. A 72-channel GNSS / GPS receiver provides the best reception of the position information.enlarge 5 watts transmit power, the transmission range of your AIS position reports and therefore also your visibility in your environment.By the used SOTDMA time slot transmission method of easyTRX3 able higher data rates can be achieved position messages of your own AIS. This is achieved by the easyTRX3 already makes in the transmission of AIS data a reservation for the same time slot in the next transmission.The easyTRX3 comes standard with USB, NMEA 2000, NMEA 0183 and an internal FM antenna splitter. For owners of fiberglass and wood hull boats, the integrated GPS receiver module is particularly interesting because it eliminates the installation of an external GPS antenna for these types of boats.In the internal memory, all AIS can be stored for backup driving data, similar to a black box. With a USB connection to a PC / MAC, the memory can be read or the relevant ship data is programmed using the software supplied in the easyTRX3 without the easyTRX3 must be connected to its own power supply.The modular design of the easyTRX3 and future demands. The device can such future depending on the customer with additional modules. be as WiFi, DVB-T2 or mobile equipped and expanded.Technical specifications: As a general rule • 1-channel FM transmitter • 2-channel FM receiver • 72-channel GNSS receiver • Channel Sensitivity: better than -112 dBm • IP67 • Operating temperature -10 ° C to + 55 ° C • Data type NMEA output: VDM • Transmission power: 5 watts • Dimensions: 190 mm * 135 mm * 60 mm • Weight: 700 grams frequencies • AIS: 161.975 MHz and 162.025 MHz approvals • BSH • IEC62287-2

Save the hassle of installing a costly second antenna and use your existing single antenna with VHF / AIS / FM, by enlisting the lightweight, compact NSPL 500 antenna splitter. When combined with the NAIS 500 AIS system, you can see and be seen on the water, Whether tackling busy shipping lanes or crowded ports.- FM connector for SonicHub ™ 2 or any compatible stereo FM unit.- Weight 260 grams.- Waterproof IPX7 standard.- Low Power Consumption, average power consumption of less than 150 mA at 12 V DC.- Suitable for 12 or 24 V DC system with a wide range of supported input Voltages from 9.6 V to 31.2 V DC.High Performance with Low LossThe NSPL 500's high-performance design means no insertion loss on AIS and VHF receive, and low insertion loss on AIS and VHF transmit.

The VHF MARINE KIT contains a B & G - V60-B FM radio system with AIS transponder & int.GPS and a matching external GPS antenna GPS-500The external antenna is e.g. required in the installation on steel or Aliminiumschiffen or ships with carbon fiber laminate.With this VHF marine radio with AIS transceivers Class B and integrated GPS are on the move on the water always safe.Thanks to the integrated AIS transceiver Class B you can see equipped with AIS vessels in the area and be seen by them.You can also add up to two optional wireless handsets to stay anywhere on board in conjunction.Main features:- Integrated AIS transceivers Class B- VHF DSC Class D certification- Integrated GPS receiver- Detachable handheld microphone supports connection to front or back- Connect to wireless to two handsets- Add optional add a megaphone or an external speaker- NMEA 2000® 0183®- and NMEA connectivityOptimum visibility thanks to the integrated AISThe RS40-B includes an AIS transceiver Class B, which not only receives AIS targets, but also the position of your boat with AIS equipped ships in the vicinity sends.So that others can see your boat under all conditions, day and night.An integrated AIS receiver monitors the position of other AIS vessels to avoid collisions proactive in crowded ports and on busy waterways.AIS information can be displayed on the integrated display of the radio or displayed on a compatible multifunction display on the chart or radar screen.Detachable hand-held microphoneThe detachable hand microphone of the V60-B can be connected to the front or the back of the radio.The optional extension cord allows the separate installation of radio and microphone.The result is a simple and affordable solution for every installation and clutter free.For example, the V60-B can be mounted above the head without hanging cable, while the microphone is connected to a power strip down on the control panel.expandable with wireless handsetsAdd an optional wireless HS40 handset to take to your radio anywhere on board.Each handset duplicates the display and controls your radio so that the remote access possible to all key functions is.To a single V60-B can be connected up to two handheld devices.If several handsets are connected, the radio also acts as an intercom system on board.!!! minimum requirements for the product !!!FM antenna required for wireless (sold separately).For the AIS function is either a second FM antenna or VHF / AIS antenna splitter required!AVAILABLE FROM MIDDLE Expected in August 2019!

Reduce the risk of collisions with the NAIS-500.AIS is a new type of security equipment that helps you to fore and be seen at sea.AIS focuses on all ships near you and helps to reduce the risk of collision through data exchange between the ships.-Black box class-B AIS transponder (AIS transmitter/recipient) system-Nmea-20000 and NMEA-0183 (high speed) interface, USB interface-Multiplex input for grinding and using NMEA0183 Data with 4800 Baud-USB port for programming the device and connecting a navigation PC-GPS antenna included-1.8 m NMEA2000 sinking line and T connector included-It supply 9.6 - 31.2V DC, electricity consumption 170mA @ 12V-Dimensions (LXBXH): 152 x 100x 52mm, housing waterproof according to IPX7An also an ais transmission and reception antenna is required and, if there is still no NMEA2000 installation, an NMEA2000 starter kit.

Reduce the risk of collisions with the NAIS-500.AIS is a new type of security equipment that helps you to fore and be seen at sea.AIS focuses on all ships near you and helps to reduce the risk of collision through data exchange between the ships.-Black box class-B AIS transponder (AIS transmitter/recipient) system-Nmea-20000 and NMEA-0183 (high speed) interface, USB interface-Multiplex input for grinding and using NMEA0183 Data with 4800 Baud-USB port for programming the device and connecting a navigation PC-GPS antenna included-1.8 m NMEA2000 sinking line and T connector included-It supply 9.6 - 31.2V DC, electricity consumption 170mA @ 12V-Dimensions (LXBXH): 152 x 100x 52mm, housing waterproof according to IPX7An ais transmission and reception antenna is required, B.Z.W. An antenna splinter and, if there is still no NMEA2000 installation, an NMEA2000 starter kit.

With this FM seaside radio system with AIS transceiver in class B and integrated GPS you are always safe on the water.Thanks to the integrated AIS transceiver of class B, you can see with AIS equipped ships in the area and be seen by them.In addition, you can add up to two optional wireless handheld devices to stay connected on board from anywhere.Main characteristics:- Integrated AIS transceiver of class B-FM radio with DSC approval class D- Integrated GPS receiver- Removable hand microphone supports connection to the front or back- Connect up to two wireless handheld devices- Add a megaphone or an external loudspeaker optionally- NMEA 0183® and NMEA 2000® connectivityOptimal visibility thanks to integrated AISThe RS40-B comprises an AIS transceiver in class B, which not only receives AIS goals, but also sends the position of their boat to ships equipped with AIS in the area.This allows others to recognize their boat under all conditions, day and at night.An integrated AIS receiver monitors the position of other AIS ships in order to proactively avoid collapse in overcrowded ports and on busy waterways.AIS information can be displayed on the integrated screen of the radio or displayed via a compatible multifunction display on the map or radar screen.Removable hand microphoneThe removable hand microphone of the V60-B can be connected to the front or back of the radio.The optional extension cable enables separate assembly of radio and microphone.This gives you a simple and inexpensive solution for every assembly location and without a cable clod.For example, the V60-B can be mounted above the head without hanging cables, while the microphone is connected to a socket strip at the bottom of the control panel.Expandable with wireless handheld devicesAdd an optional wireless HS40 handheld device to take your radio on board with you.Each handheld device duplicates the display and the controls of your radio device, so that remote access to all key functions is possible.Up to two handheld devices can be connected to a single V60-B.When several handheld devices are connected, the radio acts at the same time as an intercom on board.!!! !!! !!!The following antennas are required to operate the device:-VHF antenna for FM-Seefunk-VHF antenna for AIS reception and AIS transmitters-alternatively a suitable splitter (e.g. NAPL from Navico) to handle FM apparatus and AIS via a single antenna.-An external GPS antenna (GPS-500 from Navico) is required if the internal GPS antenna integrated in the radio has poor reception. For example, hidden installation or metal structures.!!! !!! !!!

With this FM seaside radio system with AIS transceiver in class B and integrated GPS you are always safe on the water.Thanks to the integrated AIS transceiver of class B, you can see with AIS equipped ships in the area and be seen by them.In addition, you can add up to two optional wireless handheld devices to stay connected on board from anywhere.Main characteristics:- Integrated AIS transceiver of class B-FM radio with DSC approval class D- Integrated GPS receiver- Removable hand microphone supports connection to the front or back- Connect up to two wireless handheld devices- Add a megaphone or an external loudspeaker optionally- NMEA 0183® and NMEA 2000® connectivityOptimal visibility thanks to integrated AISThe RS40-B comprises an AIS transceiver in class B, which not only receives AIS goals, but also sends the position of their boat to ships equipped with AIS in the area.This allows others to recognize their boat under all conditions, day and at night.An integrated AIS receiver monitors the position of other AIS ships in order to proactively avoid collapse in overcrowded ports and on busy waterways.AIS information can be displayed on the integrated screen of the radio or displayed via a compatible multifunction display on the map or radar screen.Removable hand microphoneThe removable hand microphone of the RS40-B can be connected to the front or back of the radio.The optional extension cable enables separate assembly of radio and microphone.This gives you a simple and inexpensive solution for every assembly location and without a cable clod.For example, the RS40-B can be installed above the head without hanging cables, while the microphone is connected to a socket strip at the bottom of the control panel.Expandable with wireless handheld devicesAdd an optional wireless HS40 handheld device to take your radio on board with you.Each handheld device duplicates the display and the controls of your radio device, so that remote access to all key functions is possible.Up to two handheld devices can be connected to a single RS40-B.When several handheld devices are connected, the radio acts at the same time as an intercom on board.!!! !!! !!!The following antennas are required to operate the device:-VHF antenna for FM-Seefunk-VHF antenna for AIS reception and AIS transmitters-alternatively a suitable splitter (e.g. NAPL from Navico) to handle FM apparatus and AIS via a single antenna.-An external GPS antenna (GPS-500 from Navico) is required if the internal GPS antenna integrated in the radio has poor reception. For example, hidden installation or metal structures.!!! !!! !!!

A useful article from the group NAVIGATION

Increased frequency and reliability of the transmissionThe V3100 AIS Class B uses the same technology as SOTDMA Class A solutions. This self-organizing technology transfer allows the system to other AIS units set a regular time slot for transmission within reach, making more frequent and more reliable position updates are made possible in heavy traffic areas. The V3100 transmits updates based on the speed of the ship up to once every five seconds, six times the frequency of reporting the standard AIS is Class B.Greater range of transmissionThe V3100 has a maximum transmission power of 5 watts, 2.5 times the transmission power of standard AIS solutions corresponds to class B. Thus, ships that are equipped with the V3100 are detected within a larger range over AIS and transfer to satellite-based AIS receiver is more reliable.Integrated "black box" solutionThis "black box" -ais solution is designed for use with Simrad multifunction displays and more NMEA 2000® or NMEA 0183® ports connected Marine electronic equipment. The transfer to a standard PC is supported with USB connectivity. The V3100 is housed in a compact waterproof case to IP67 and has an integrated SD card slot for the stand-alone AIS data logging.Key features- Improved performance compared to standard AIS Class B- transmission over longer distances with an output power of 5 watts- More frequent transmission of position updates with SOTDMA- Increased transmission reliability in heavy traffic areas- Integrated "black box" solution- NMEA 2000® ports, dual NMEA 0183® ports and connectivity via USB- Waterproof case according to IP67- Integrated SD card slot for AIS data logging

AIS4000 Transponder-Paket Klasse A

The VHF MARINE KIT includes a Simrad - RS40-B FM radio system with AIS transponders & int.GPS and a matching external GPS antenna GPS-500The external antenna is e.g. required in the installation on steel or Aliminiumschiffen.With this VHF marine radio with AIS transceivers Class B and integrated GPS are on the move on the water always safe.Thanks to the integrated AIS transceiver Class B you can see equipped with AIS vessels in the area and be seen by them.You can also add up to two optional wireless handsets to stay anywhere on board in conjunction.Main features:- Integrated AIS transceivers Class B- VHF DSC Class D certification- Integrated GPS receiver- Detachable handheld microphone supports connection to front or back- Connect to wireless to two handsets- Add optional add a megaphone or an external speaker- NMEA 2000® 0183®- and NMEA connectivityOptimum visibility thanks to the integrated AISThe RS40-B includes an AIS transceiver Class B, which not only receives AIS targets, but also the position of your boat with AIS equipped ships in the vicinity sends.So that others can see your boat under all conditions, day and night.An integrated AIS receiver monitors the position of other AIS vessels to avoid collisions proactive in crowded ports and on busy waterways.AIS information can be displayed on the integrated display of the radio or displayed on a compatible multifunction display on the chart or radar screen.Detachable hand-held microphoneThe detachable hand microphone of the RS40-B can be connected to the front or the back of the radio.The optional extension cord allows the separate installation of radio and microphone.The result is a simple and affordable solution for every installation and clutter free.For example, the RS40-B can be mounted above the head without hanging cable, while the microphone is connected to a power strip down on the control panel.expandable with wireless handsetsAdd an optional wireless HS40 handset to take to your radio anywhere on board.Each handset duplicates the display and controls your radio so that the remote access possible to all key functions is.To a single RS40-B can be connected up to two handheld devices.If several handsets are connected, the radio also acts as an intercom system on board.!!! minimum requirements for the product !!!FM antenna required for wireless (sold separately).For the AIS function is either a second FM antenna or VHF / AIS antenna splitter required! AVAILABLE FROM MIDDLE Expected in August 2019!
