B&G Zeus MFDs

NAVICO - Montagebügel für SIMRAD NSS evo2 und B&G Zeus² - 9"

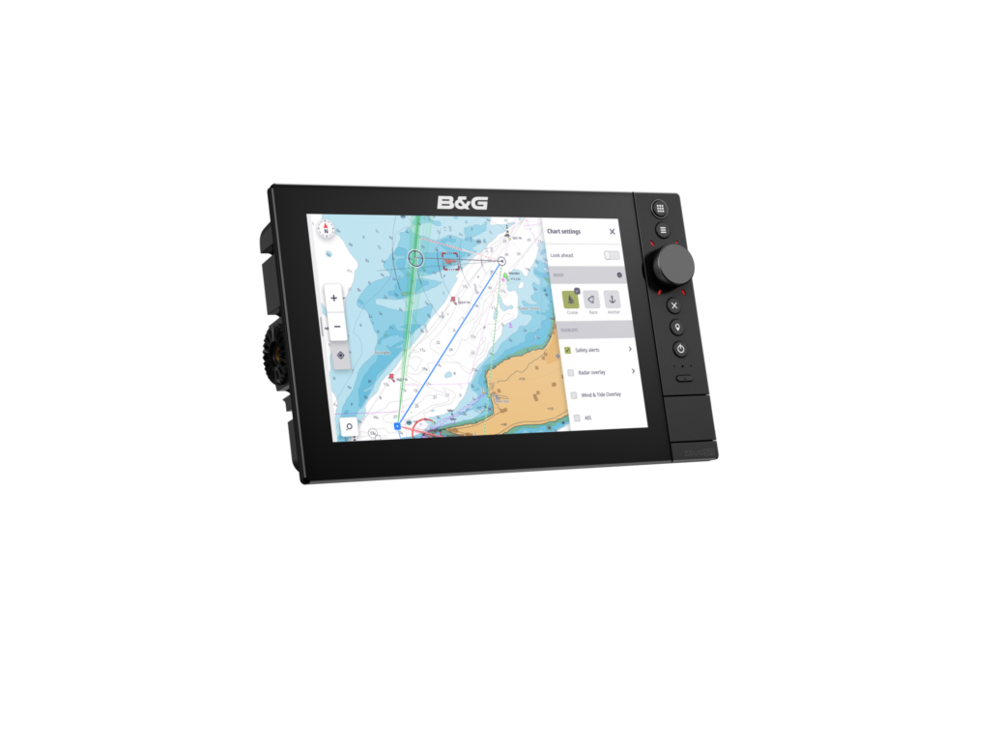

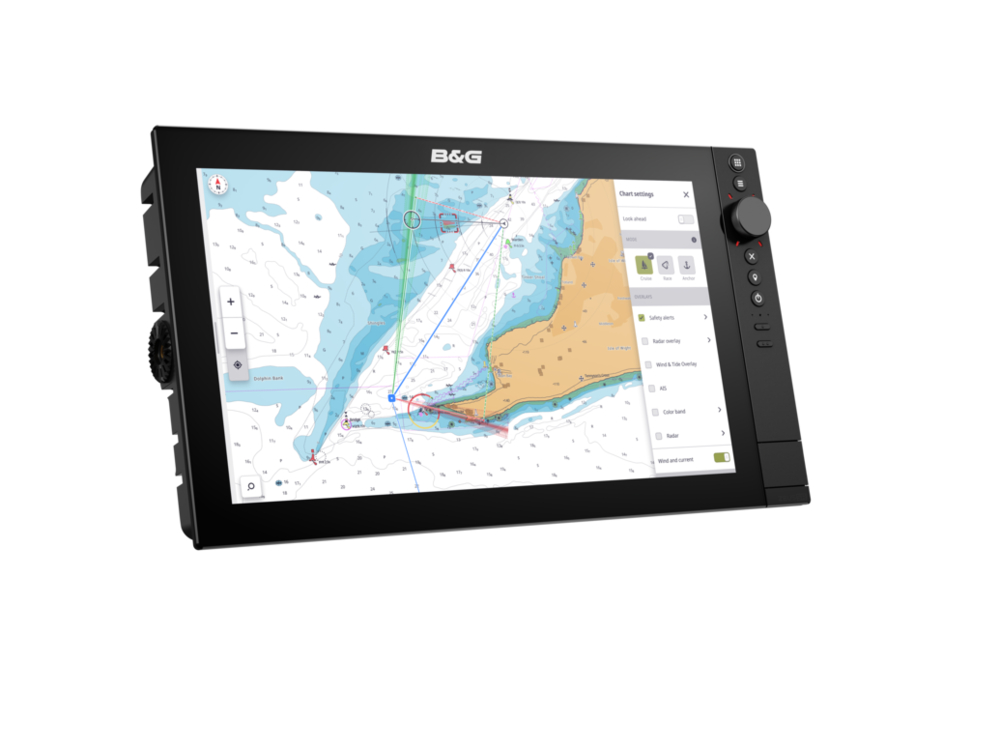

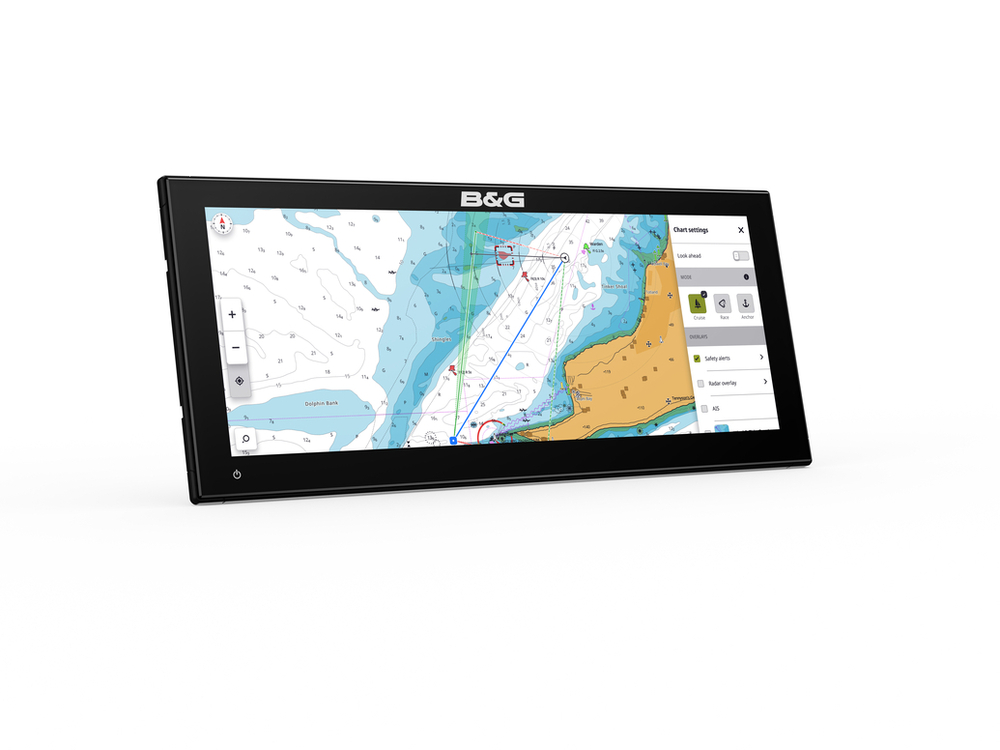

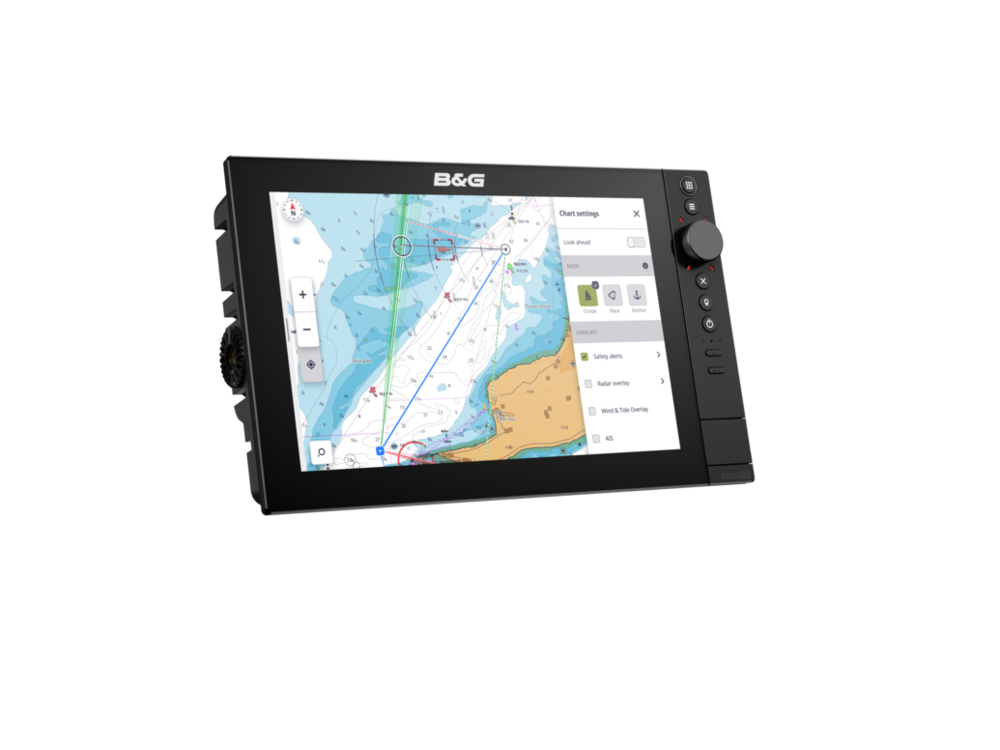

SAILING, SIMPLIFIEDWith its unique Sailing Modes, Zeus S is the next generation of chartplotter. Available in three sizes, it’s designed specifically to make sailing easier, giving you all the information you need in an easy-to-interpret way. Experience enhanced sailing features, a new, intuitive interface, and clear, detailed C-MAP® charting for the safest, easiest navigation.KEY FEATURESNEW SAILING MODESSee the data you need, when you need it. Simply select your Sailing Mode for your situation, giving you just the information you need for Cruising or Racing.DEDICATED SAILING FEATURESImprove your sailing with easy to interpret pointers from B&G®’s award-winning sailing features for Cruising and Racing, with updates to SailSteer™, Laylines, StartLine, Routes, Racing and many more. C-MAP powered Safety Alerts guard against grounding and dangerous objects.DETAILED C-MAP® CHARTSC-MAP DISCOVER™ X and REVEAL™ X charts feature highly accurate data with simple viewing options for easy and clear navigation. Tides and currents projections improve trip planning and route plotting, further supported by our fastest-ever autorouting. Plus, get quick, one-touch access to POIs, tides, channels, and more.EASY INTEGRATIONPut your Zeus S at the heart of a complete sailing system with easy integration. With NMEA 2000®, you can connect to Autopilot, Instruments, Radar, Sailing Processors, Audio, Engines, and a wealth of other compatible products. Zeus S also integrates easily with the B&G® App, letting you plan trips, review routes, and manage waypoints from home, then sync the moment you step onboard.INTUITIVE INTERFACEAcross the device, our new and intuitive interface is designed to feel familiar. Zeus S boasts a handy Setup Wizard to get you started, and ongoing tips to help you get the most from your Zeus S Chartplotter and networked equipment.

ZG100 - NMEA2000 GPS receiver with electronic compassGPS / GLONASS receiver,Waas/Egnos capable,Galileo compatible according to software update.10 Hz updaterates for quick and accurate position.Integrated electronic compass (10 Hz) suitable for radaroverlay and to stabilize the card image even at low speed.Delivery takes place includingLower part for assembly on 1 "standard foot and1.8 m NMEA cable.

SAILING, SIMPLIFIEDWith its unique Sailing Modes, Zeus S is the next generation of chartplotter. Available in three sizes, it’s designed specifically to make sailing easier, giving you all the information you need in an easy-to-interpret way. Experience enhanced sailing features, a new, intuitive interface, and clear, detailed C-MAP® charting for the safest, easiest navigation.KEY FEATURESNEW SAILING MODESSee the data you need, when you need it. Simply select your Sailing Mode for your situation, giving you just the information you need for Cruising or Racing.DEDICATED SAILING FEATURESImprove your sailing with easy to interpret pointers from B&G®’s award-winning sailing features for Cruising and Racing, with updates to SailSteer™, Laylines, StartLine, Routes, Racing and many more. C-MAP powered Safety Alerts guard against grounding and dangerous objects.DETAILED C-MAP® CHARTSC-MAP DISCOVER™ X and REVEAL™ X charts feature highly accurate data with simple viewing options for easy and clear navigation. Tides and currents projections improve trip planning and route plotting, further supported by our fastest-ever autorouting. Plus, get quick, one-touch access to POIs, tides, channels, and more.EASY INTEGRATIONPut your Zeus S at the heart of a complete sailing system with easy integration. With NMEA 2000®, you can connect to Autopilot, Instruments, Radar, Sailing Processors, Audio, Engines, and a wealth of other compatible products. Zeus S also integrates easily with the B&G® App, letting you plan trips, review routes, and manage waypoints from home, then sync the moment you step onboard.INTUITIVE INTERFACEAcross the device, our new and intuitive interface is designed to feel familiar. Zeus S boasts a handy Setup Wizard to get you started, and ongoing tips to help you get the most from your Zeus S Chartplotter and networked equipment.

The Zeus³ 9 is an easy navigation system plotter for blue water sailors and regatta sailors with a 9-inch touchscreen display, high-performance electronics, and a large working area, which was developed specifically for the sailors to use.· 9-inch widescreen SolarMAX ™ HD Display· Excellent screen visibility with ultra-wide viewing angles· Easy to use, even when wet or stormy seas· Powerful for responsive handling and a fast card orientation· Dedicated sailing functions like Sail Steer, laylines and Race Panel· Built-in Wi-Fi for easy access to maps, weather, updates, support and screen mirroring· Integrated Forward Scan Sonar ™ support for safer driving through shallow water· Can be seamlessly integrated with other B & G displays and accessories in a wide boot system· Dimensions: (W) 287 x 166 x 90 mm, with bars: 311 x 180 x 95 mm

The Zeus³ 12 is an easy-to-use plotter navigation system for blue water sailors and regatta sailors with a 12-inch touchscreen display, high-performance electronics, and a large working area, which was developed specifically for the sailors.· 12-inch widescreen SolarMAX ™ HD Display· Excellent screen visibility with ultra-wide viewing angles· Easy to use, even when wet or stormy seas· Powerful for responsive handling and a fast card orientation· Dedicated sailing functions like Sail Steer, laylines and Race Panel· Built-in Wi-Fi for easy access to maps, weather, updates, support and screen mirroring· Integrated Forward Scan Sonar ™ support for safer driving through shallow water· Can be seamlessly integrated with other B & G displays and accessories in a wide boot system· Dimensions: (W) 352 x 225 x 98 mm, with bars: 377 x 241 x 120 mm

B & G - Zeus³ 16 - Touchscreen - MultifunktionskartenplotterThe Zeus³ 16 is an easy-to-use plotter navigation system for blue water sailors and regatta sailors with a 16-inch touchscreen display, high-performance electronics, and a large working area, which was developed specifically for the sailors.· 16-inch widescreen SolarMAX ™ HD Display· Excellent screen visibility with ultra-wide viewing angles· Easy to use, even when wet or stormy seas· Powerful for responsive handling and a fast card orientation· Dedicated sailing functions like Sail Steer, laylines and Race Panel· Built-in Wi-Fi for easy access to maps, weather, updates, support and screen mirroring· Integrated Forward Scan Sonar ™ support for safer driving through shallow water· Can be seamlessly integrated with other B & G displays and accessories in a wide boot system· Dimensions: (WxHxD) 437 x 256 x 98 mm, with bars: 462 x 264 x 122 mm

SAILING, SIMPLIFIEDWith its unique Sailing Modes, Zeus S is the next generation of chartplotter. Available in three sizes, it’s designed specifically to make sailing easier, giving you all the information you need in an easy-to-interpret way. Experience enhanced sailing features, a new, intuitive interface, and clear, detailed C-MAP® charting for the safest, easiest navigation.KEY FEATURESNEW SAILING MODESSee the data you need, when you need it. Simply select your Sailing Mode for your situation, giving you just the information you need for Cruising or Racing.DEDICATED SAILING FEATURESImprove your sailing with easy to interpret pointers from B&G®’s award-winning sailing features for Cruising and Racing, with updates to SailSteer™, Laylines, StartLine, Routes, Racing and many more. C-MAP powered Safety Alerts guard against grounding and dangerous objects.DETAILED C-MAP® CHARTSC-MAP DISCOVER™ X and REVEAL™ X charts feature highly accurate data with simple viewing options for easy and clear navigation. Tides and currents projections improve trip planning and route plotting, further supported by our fastest-ever autorouting. Plus, get quick, one-touch access to POIs, tides, channels, and more.EASY INTEGRATIONPut your Zeus S at the heart of a complete sailing system with easy integration. With NMEA 2000®, you can connect to Autopilot, Instruments, Radar, Sailing Processors, Audio, Engines, and a wealth of other compatible products. Zeus S also integrates easily with the B&G® App, letting you plan trips, review routes, and manage waypoints from home, then sync the moment you step onboard.INTUITIVE INTERFACEAcross the device, our new and intuitive interface is designed to feel familiar. Zeus S boasts a handy Setup Wizard to get you started, and ongoing tips to help you get the most from your Zeus S Chartplotter and networked equipment.

Set consisting of B & G 9 "touchscreen Multifunktionskartenplotter Zeus³ 9 and B & G + Halo20 pulse compression radarThe Zeus³ 9 is an easy navigation system plotter for blue water sailors and regatta sailors with a 9-inch touchscreen display, high-performance electronics, and a large working area, which was developed specifically for the sailors to use.· 9-inch widescreen SolarMAX ™ HD Display· Excellent screen visibility with ultra-wide viewing angles· Easy to use, even when wet or stormy seas· Powerful for responsive handling and a fast card orientation· Dedicated sailing functions like Sail Steer, laylines and Race Panel· Built-in Wi-Fi for easy access to maps, weather, updates, support and screen mirroring· Integrated Forward Scan Sonar ™ support for safer driving through shallow water· Can be seamlessly integrated with other B & G displays and accessories in a wide boot system· Dimensions: (W) 287 x 166 x 90 mm, with bars: 311 x 180 x 95 mmThe HALO20 + enables close range scanning almost in real time with the industry's leading rotational speed of 60 rev / min to avoid collisions.Recognize potential hazards immediately thanks Velocity Track ™ -Doppler technology, and take advantage of simultaneous sampling at close range and in large distances of up to 36 nautical miles - a compact 20-inch radome antenna.product features- 36 sm range with a compact 20-inch radome- Advanced pulse compression technology with Beam Sharpening function- Simultaneous Dual Range mode for near and far vision- Ultra high-speed operation at 60 U / min at a range up to 1.5 sm- Velocity Track ™ -Doppler technology to avoid collisions- Easy operation with port, on-sea, weather and Vogelmodi- MARPA target tracking (up to 10 destinations, 20 in dual radar mode)- Ready to use out of the standby modeHALO20 + is ideally suited for a variety of coastal boats, equipped with a compact radome and antenna provides high resolution at close range, medium and large distances.Monitor two distance ranges simultaneously in Dual Range mode, which allows you to keep distant thunderstorm cells in the eye while you have risks of collision near in view.The pulse compression technology HALO20 + -Radars ensures that the target detection is not affected of the selected range, while the beam sharpening technology allows for improved isolation between near and distant targets.Thanks to the industry's first operation with 60 U / at distances up to 1.5 miles the HALO20 + -Radar provides a full 360 degree rotation per second min.The extremely fast update allows at close range a view near real-time to avoid collisions with fast moving targets.The Velocity Track ™ technology provides immediate visual feedback on whether to approach or objectives they move away.The easy to understand color coding shows potential hazards, improving situational awareness and reduces the risk of collision in addition.The HALO20 + -Radar automatically checks each target in the respective area.It is not necessary to select individual targets manually and there is no limit to the number of displayed on the screen at targets.The Halo20 + -Radar can be activated immediately from the energy-saving standby mode and provides out without delay right there for a high speed radar coverage where it is needed.Even if the HALO20 + -Radar is completely turned off, it is ready for operation as opposed to traditional pulse radar antennas within a few seconds. No warm-up phase.Whether navigating through high traffic waterways or poor visibility conditions prevail, the HALO20 + -Radar provides a clear picture of your current environment.The operation modes Harbor, Offshore, Weather, Bird and Custom optimize the advanced signal processing of the HALO20 + -Radars to ensure that objectives are clearly visible even under the harshest environmental conditions.Technical specificationsSupply voltage 10.5 - 31.2 VDC (12 / 24V system)Max. Wind speed 100 knots (51 m / s)Typical power consumption 20WOperating temperature range -25 ° to + 55 ° C (-13 ° to + 130 ° F)Max. Power consumption 29WMax range, scale 36 NMBeamwidth 4.9 ° H nominal (-3dB) 2.5 ° with target separation on high x 25 ° VWeight 5.9 kg (13 lbs) without cableMin.-area Maßstab50 m / 200 ft / 50 ydDimensions Diameter 510mm (20 ")Dimensions (L x W x H) 510mm dia x 223 mm H. (20 "dia x 8.8" H)Recommended fuse rating 5AHumidity 95% RH at 35 ° C (95 ° F)Radar modes Harbor, Offshore, Weather, Bird, Dual Range, North Up, Course Up, Relative motion, True MotionWater resistance IPX6Pulse Compression Radar TechnologySpeed ​​Up to 60 RPM (Range Dependent)
