DC-DC converters with galvanic isolation

Orion-TR Smart isolated DC/DC chargers with a 3-stable batteryada algorithmSuitable for Bluetooth SmartMonitoring, changing the settings and updating the charger at newStanding software functions can be used with any Bluetooth-enabled smartphone, tablet or othersDevice can be carried out.Fully programmable- Batterieladealgorithm (configurable) or firm output.- Intelligent generator compatibility: engine running.Adaptive 3-stage loading algorithm: constant current-constant voltage-preservation• With lead batteries, it is important that the recording time is kept short in flat discharges toAvoid an overload of the battery. After a deep discharge, theConstant voltage duration automatically extended to ensure that the battery is completelyload.• The recording time is fixed for lithium batteries, 2 hours by default.• Alternatively, a fixed output voltage can be selected.Fern-/shutdownA remote-controlled on/off switch or a relay contact can be found on the two-pin connectorconnect.Alternatively, the connection H (right) of the two-pole plug into a battery plus pole or theConnection l (left) of the two-pin connector to the battery minus pole (or for example to the bodyof a vehicle).All models are short -circuit -resistant and can be switched in parallel to increase the output currentwill.Unlimited many devices can be switched in parallel.Over -temperature protectionWith high ambient temperatures, the output current is reduced.Protection class IP43When the screw terminals are installed on the device.Screw terminalsNo special tools are required for installation.Input protection (not interchangeable)Technical specifications:Model: 12/12-30 (360W)Input voltage area (1): 10-17 VSub -voltage shutdown: 7 VSub -voltage restart: 7.5 VStarting stern tension: 12.2VSetting range output voltage: 10-15 VTolerance Output voltage: +/- 0.2 VStarting noise: 2 MV RMSAccount.Maximum output current (10 s) with output stern voltage minus 20%: 40 aShort -circuit output current: 60 aAccount. Output power at 25 ° C: 430 WAccount. Output power at 40 ° C: 360 WEfficiency: 87%Electricity recording without load: <80 MAGalvanic separation: 200 V DC between the entrance, exit and housingOperating temperature range: -20 to +55 ° C (reduction in performance by 3% per ° C above 40 ° C)Air humidity: max. 95%, not condensingDC connection: screw terminalsMaximum cable cross -section: 16 mm² (AWG6)Weight: 1.8 kgDimensions (HXBXT): 130 x 186 x 80 mm(1): If the output voltage is set to nominal or lower than nominal, it remains stable within the specified input voltage area (downward-up function).If the output voltage is set up by a certain percentage higher than the nominal value, the minimum input voltage, in which the output voltage remains stable (not drops), increases by the same percentage.

Dieses Remote-Kabel ermöglicht die Fernsteuerung von isolierten Victron DC-DC-Ladegeräten und verbessert die Flexibilität und Benutzerfreundlichkeit von Installationen in Fahrzeugen und stationären Anlagen. Technische Daten sind spezifisch für das verwendete Ladegerät relevant.

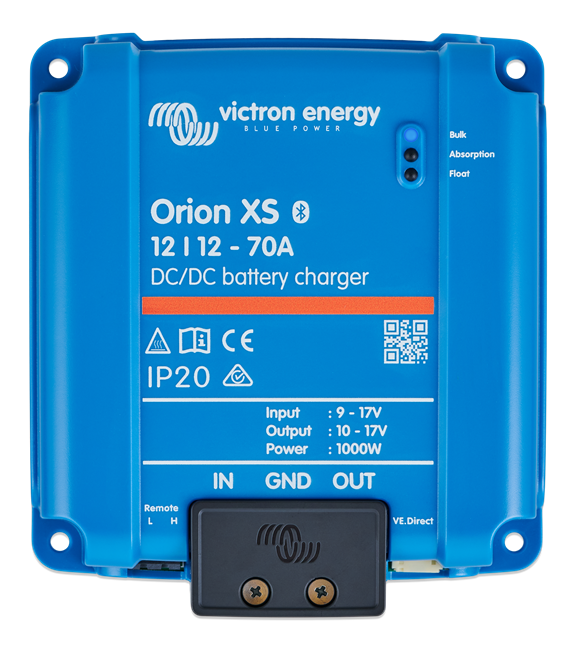

Orion XS-Modell mit EMV-Verbesserungen - empfohlen für die Schifffahrt sowie für andere Anwendungen mit UKW-FunkgerätenDer Orion XS wurde von Grund auf neu entwickelt und revolutioniert das adaptive DC-DC-Aufladen. Zur Verwendung in dualen Batteriesystemen, die mit einer (intelligenten) Lichtmaschine geladen werden. Dieses Gerät bietet nicht nur eine erstklassige Leistung, sondern garantiert auch die Sicherheit Ihres Systems.Mit konfigurierbaren Eingangs- und Ausgangsströmen können Sie sicher sein, dass Ihr Orion XS bei einer Temperatur von bis zu 40 °C mit maximaler Leistung arbeitet. Die innovative Technologie zur Kühlung der Aluminiumplatine sorgt für einen erstaunlichen Wirkungsgrad von 98 %, ohne dass Lüfter erforderlich sind.Als integraler Bestandteil Ihres Victron-Systems bietet das Orion XS umfassende Fernüberwachungs- und Fernsteuerungsmöglichkeiten, wodurch Sie die vollständige Kontrolle über Ihr Gerät und System erhalten.- Vollständig konfigurierbar- Erkennung der Motorabschaltung- Intelligente Ladealgorithmen- Arbeitet mit VictronConnect- Optionale FernüberwachungKonfigurierbares AufladenMit den einfachen Bedienelementen können Sie den Eingangs- und Ausgangsstrom präzise einstellen. Dies hilft, Lichtmaschinen vor Überlastung zu schützen und die Service-Batterie richtig zu laden, insbesondere bei intelligenten Lichtmaschinen.Parallelschaltung zur Erhöhung des AusgangsstromsEs lassen sich beliebig viele Orion XS-Geräte parallel anschließen. Dadurch wird die Skalierung des Ausgangsstroms zur Anpassung an die Voraussetzungen Ihres Systems erleichtert.Intelligente LichtmaschinenkompatibilitätDurch die integrierte Motorabschaltungserkennung sorgt das Orion XS dafür, dass das Ladegerät nur dann Strom bezieht, wenn der Motor läuft. Es hilft auch dabei, den richtigen Ladestrom von intelligenten Lichtmaschinen zu erhalten, wie sie in Euro 5 & Euro 6 Motoren zu finden sind.Adaptiver LadealgorithmusDas Orion XS verfügt über anpassbare Ladealgorithmen und 8 Batterievoreinstellungen. Bei Blei-Säure-Batterien sorgen diese Einstellungen für optimale Konstantspannungszeiten sowohl bei geringen als auch bei tiefen Entladungen.Umfassender elektronischer SchutzDas Orion XS ist mit einem umfassenden elektronischen Schutz gegen Überlastung, Kurzschluss und zu hohe Temperaturen ausgestattet. Es reduziert automatisch die Ausgangsleistung, wenn die maximale Produkttemperatur erreicht ist.Abschaltung bei niedriger Temperatur und UnterspannungsschutzUm Schäden an Lithium-Batterien zu vermeiden, schaltet sich das Ladegerät bei niedrigen Temperaturen und wenn die Eingangsspannung unter einen vom Benutzer konfigurierbaren Sicherheitswert sinkt automatisch ab und schützt so die Starterbatterie vor Tiefentladung.Staub- und wasserdichtDas Orion XS ist staub- und wassergeschützt und hat die Schutzklasse IP65.Input voltage range 9-17 VOutput voltage adjust range 10-17 VOutput voltage tolerance +/- 0.25% (max)Output voltage noise 10 mV rmsInput and output current setting range 1 – 50 AMaximum constant short-circuit current 50 AContinuous output power up to 40°C 1) 700 WMaximum efficiency 98.5 %No-load current consumption < 100 mAStandby current consumption < 1.5 mACan be used as power supply Yes, output voltage can be set with VictronConnect AppOperating temperature range -20 to +60 °C (derating 1.5 % per °C above 40 °C)Humidity Max. 95 % non-condensingDC connection Screw terminalsMaximum cable cross-section 25 mm² (AWG4)Weight 0.330 kgDimensions hxwxd 137.3 x 123.1 x 40 mm

FIGURE SIMILAR !!!These are the 18 Amperer execution!***New Release of the manufacturer.First delivery in April in small numbers.---> Current orders can be delivered until around the beginning of May! <---***Orion Tr Smart isolated DC / DC chargers with 3-stage battery charging algorithmSuitable for Bluetooth SmartMonitoring, change settings and update the charger for newly availablerelated software functions can work with any Bluetooth-enabled smartphone, tablet or otherDevice are made.fully programmable- battery charging algorithm (configurable) or fixed output.- Intelligent Generator Compatibility: motor running detection.Adaptive 3-stage charging algorithm: constant current - constant voltage - Conservation• For lead-acid batteries, it is important that in shallow discharges the recording time is kept short toto avoid overloading the battery. After a deep discharge is theConstant-voltage duration is automatically extended to ensure that the battery fullycharging.• For lithium batteries, the recording time is fixed, by default 2 hours.• Alternatively, a fixed output voltage can be selected.Remote on / off featurecan be to the two-pin connector, a remote-controlled on / off switch or relay contactconnect.Alternatively, the terminal H can (right) of the two-pin plug to a battery terminal or theTerminal L (left) of the two-pin connector to the battery negative terminal (or, for example, to the bodya vehicle) are switched.All models are short circuit and can be switched in parallel to increase the output currentbecome.There can be an unlimited number of devices connected in parallel.Overtemperature protectionAt high ambient temperatures, the output current is reduced.Protection class IP43If the screw terminals are installed facing downward on the device.screwTo install No special tools are required.Input fuse (not replaceable)Technical specifications:Model: 12 / 12-18 (220W)8-17 V: input voltage (1)Undervoltage shutdown: 7 VUndervoltage restart: 7.5VRated output voltage: 12,2VSetting Output voltage: 10-15 VOutput voltage tolerance: +/- 0.2 VOutput Noise: 2 mV rmsCont. Output current at the rated output voltage and 40 ° C: A 18Maximum output current (10 s) at rated output voltage minus 20%: 25 AShort circuit output current: 40 ACont. Output power at 25 ° C: 280 WCont. Output at 40 ° C: 220 WEfficiency: 87%Current consumption without load: <80 mAIsolation: 200 V DC between input, output and housingOperating temperature range: -20 to + 55 ° C (reduction of the power by 3% per ° C above 40 ° C)Humidity: Max 95%, non-condensing.DC connection: ScrewMaximum cable cross-section: 16 mm (AWG6)Weight: 1.3 kgDimensions (HxBxT): 130 x 186 x 70 mm(1): When the output voltage is set to a nominal or less than nominal, it remains (buck-boost function) within the specified input voltage range stably.If the output voltage is set higher by a certain percentage than the nominal value, the minimum input voltage at which the output voltage remains stable increases (does not decrease), by the same percentage.

Dieser DC-DC-Wandler von Victron wandelt 24 V in 24 V um und bietet 120 W Leistung. Durch die Isolierung ist er vielseitig einsetzbar, besonders in Marine- und Off-Grid-Anwendungen.Technische Daten:- Maße: 130 x 186 x 70 mm- Gewicht: 1,2 kg- Leistung: 120 W

Potenzialfreier Ausgang 24VDC zu 12VDC 12A Dauerlast 18A Spitzenlast

Remote-controlled input/outputThe remote-controlled input/output circuit makes a high current switch on the input cabling superfluous. The remote control in/out connection can be controlled with a power saving switch or through the run/stop switch of the engine (see manual).Regular output voltage: can also be used as a battery charger, for example to load a 12 volt starter or additional battery in an otherwise 24 V system.All models are short -circuit -resistant and can be switched in parallel to increase the output current. There are an unlimited number of devices in parallel.IP43 Protection: If the device is installed downwards with the screw terminals.Screw terminals: No special tools are required for installation.Technical specifications:Input voltage area: 16-35VNominal value output voltage: 24.2VRegulated output voltage area: 20-30VCont. Output current at nominal value output voltage and 25 ° C: 5ATop value output current (10 seconds) With nominal value output voltage: 6.3aDimensions (HXBXT): 100x113x47mm

Eingang zu Ausgang 12VDC zu 6VDC D2 Stecker und Kabel

DC / DC converter 12V / 12V or 24V / 24V with galvanically insulated output duration 3A / 4A tipInput / Output voltage: 8-18V / 13.6VContinuous power: 3APeak load (ED = 33%): 4AResting / reverse current: 17 mA / 0 mADimensions W x L x H: 87 x 50 x 88 mmWeight: 318 g

Der Orion 110V auf 24V Konverter ist ideal für Anwendungen, bei denen eine stabile Spannungsumwandlung von 110 V auf 24 V benötigt wird. Mit einer Ausgangsleistung von 360 W eignet er sich für den Einsatz in industriellen und mobilen Installationen. Technische Daten:- Maße: 130 x 186 x 70 mm- Gewicht: 1,8 kg- Leistung: 360 W- Eingangsspannung: 110 V DC

Tension converter in the compact housing. Switching power supply technology in SMD technology. Stable aluminum housing with nylon end caps. Electronic protection against overheating and overvoltage. Protection against reversal through internal backup. Connection via plug -in contacts 6.3 mm. Delivery with assembly clip.Input voltage area 17-32 VOutput voltage 13.6-13.9 VEfficiency type 93 %Protection class IP 53PV 3S :: permanent performance 3APV 6S :: permanent performance 6aPV 12S :: permanent performance 12aPV 18S :: permanent performance 18aPV 24S :: permanent performance 24aDD 24-12 600 :: permanent performance 50a18a duration/21a lace

Technical specifications:Model: 24/24-17 (400W)Input voltage area (1): 20-35 VSub -voltage shutdown: 14 VSub -voltage restart: 15 VStarting stern tension: 24.2 VSetting range output voltage: 20-30 VTolerance Output voltage: +/- 0.2 VStarting noise: 2 MV RMSAccount.Maximum output current (10 s) with output stern voltage minus 20%: 25 aShort -circuit output current: 40 aAccount. Output power at 25 ° C: 480 WAccount. Output power at 40 ° C: 400 WEfficiency: 89%Electricity recording without load: <80 MAGalvanic separation: 200 V DC between the entrance, exit and housingOperating temperature range: -20 to +55 ° C (reduction in performance by 3% per ° C above 40 ° C)Air humidity: max. 95%, not condensingDC connection: screw terminalsMaximum cable cross -section: 16 mm² (AWG6)Weight: 1.6 kgDimensions (HXBXT): 130 x 186 x 70 mm(1): If the output voltage is set to nominal or lower than nominal, it remains stable within the specified input voltage area (downward-up function).If the output voltage is set up by a certain percentage higher than the nominal value, the minimum input voltage, in which the output voltage remains stable (not drops), increases by the same percentage.

A useful article from the group POWER

Depending on the model, the DC/DC converter of the type MDCI and MDC are used either for the upward or downward change of a DC voltage. The MDCI converter are galvanically isolated.Product characteristics: high efficiency, low consumption, protection against short circuit, overheating, overvoltage and polarity, high stability of the output voltage for a more reliable system,360W; 9-18VDC; Exit: 27.6VDC/13A; no galvanic separation; Efficiency> 90%Article No.: 321209Manufacturer: StuderProduct weight: 1.40 kgWeight including packaging: 1.50 kgDimensions: 64 x 163 x 160 mm (L x W x H)

Tension converter DC/DC 72W 12/12VType DDI 12/12-72 with a galvanically insulated output

Der isolierte DC-DC-Wandler von Victron mit 20 A Ausgangsstrom und galvanischer Trennung bietet eine robuste und zuverlässige Spannungsumwandlung. Mit einer Leistung von 240 W eignet er sich für professionelle Anwendungen.Technische Daten:- Maße: 130 x 186 x 70 mm- Gewicht: 1,3 kg- Leistung: 240 W

Dieser DC-DC-Wandler von Victron wandelt 110 V DC in 12 V DC um. Der Orion 360 W ist vielseitig einsetzbar und eignet sich für industrielle Anwendungen, bei denen eine stabile Spannungsumwandlung erforderlich ist. Technische Daten:- Maße: 130 x 186 x 70 mm- Gewicht: 1,8 kg- Leistung: 360 W- Eingangsspannung: 110 V DC

Der isolierte DC-DC-Wandler von Victron bietet eine stabile Umwandlung von 24 V auf 12 V bei einer Leistung von 110 W. Dank galvanischer Trennung ist er ideal für Systeme, bei denen eine Isolierung notwendig ist.Technische Daten:- Maße: 130 x 186 x 70 mm- Gewicht: 1,1 kg- Leistung: 110 W

24a duration/30a pointed galv. Isol. Output

Remote-controlled input/outputThe remote-controlled input/output circuit makes a high current switch on the input cabling superfluous. The remote control in/out connection can be controlled with a power saving switch or through the run/stop switch of the engine (see manual).Regular output voltage: can also be used as a battery charger, for example to load a 12 volt starter or additional battery in an otherwise 24 V system.All models are short -circuit -resistant and can be switched in parallel to increase the output current. There are an unlimited number of devices in parallel.IP43 Protection: If the device is installed downwards with the screw terminals.Screw terminals: No special tools are required for installation.Technical specifications:Input voltage area: 16-35VNominal value output voltage: 24.2VRegulated output voltage area: 20-30VCont. Output current at nominal value output voltage and 25 ° C: 12ATop value output current (10 seconds) With nominal value output voltage: 15aDimensions (HXBXT): 130x186x70mm

Voltage transformer isolatedType DC / DC 240W, 24 / 24V,10A duration / galv 12A tip. Isol. Output

DC-DC Charger

Remote-controlled input/outputThe remote-controlled input/output circuit makes a high current switch on the input cabling superfluous. The remote control in/out connection can be controlled with a power saving switch or through the run/stop switch of the engine (see manual).Regular output voltage: can also be used as a battery charger, for example to load a 12 volt starter or additional battery in an otherwise 24 V system.All models are short -circuit -resistant and can be switched in parallel to increase the output current. There are an unlimited number of devices in parallel.IP43 Protection: If the device is installed downwards with the screw terminals.Screw terminals: No special tools are required for installation.Technical specifications:Input voltage area: 16-35VNominal value output voltage: 24.2VRegulated output voltage area: 20-30VCont. Output current at nominal value output voltage and 25 ° C: 17ATop value output current (10 seconds) With nominal value output voltage: 25aDimensions (HXBXT): 130x186x70mm

Orion Tr Smart isolated DC / DC chargers with 3-stage battery charging algorithmSuitable for Bluetooth SmartMonitoring, change settings and update the charger for newly availablerelated software functions can work with any Bluetooth-enabled smartphone, tablet or otherDevice are made.fully programmable- battery charging algorithm (configurable) or fixed output.- Intelligent Generator Compatibility: motor running detection.Adaptive 3-stage charging algorithm: constant current - constant voltage - Conservation• For lead-acid batteries, it is important that in shallow discharges the recording time is kept short toto avoid overloading the battery. After a deep discharge is theConstant-voltage duration is automatically extended to ensure that the battery fullycharging.• For lithium batteries, the recording time is fixed, by default 2 hours.• Alternatively, a fixed output voltage can be selected.Remote on / off featurecan be to the two-pin connector, a remote-controlled on / off switch or relay contactconnect.Alternatively, the terminal H can (right) of the two-pin plug to a battery terminal or theTerminal L (left) of the two-pin connector to the battery negative terminal (or, for example, to the bodya vehicle) are switched.All models are short circuit and can be switched in parallel to increase the output currentbecome.There can be an unlimited number of devices connected in parallel.Overtemperature protectionAt high ambient temperatures, the output current is reduced.Protection class IP43If the screw terminals are installed facing downward on the device.screwTo install No special tools are required.Input fuse (not replaceable)Technical specifications:Model: 12 / 24-15 (360W)10-17 V: input voltage (1)Undervoltage shutdown: 7 VUndervoltage restart: 7.5VOutput Voltage: 24.2 VSetting Output Voltage: 20-30 VOutput voltage tolerance: +/- 0.2 VOutput Noise: 2 mV rmsCont. Output current at the rated output voltage and 40 ° C: A 15Maximum output current (10 s) at rated output voltage minus 20%: 25 AShort circuit output current: 40 ACont. Output power at 25 ° C: 430 WCont. Output at 40 ° C: 360 WEfficiency: 88%Current consumption without load <100 mAIsolation: 200 V DC between input, output and housingOperating temperature range: -20 to + 55 ° C (reduction of the power by 3% per ° C above 40 ° C)Humidity: Max 95%, non-condensing.DC connection: ScrewMaximum cable cross-section: 16 mm (AWG6)Weight: 1,8 kgDimensions (HxBxT): 130 x 186 x 80 mm(1): When the output voltage is set to a nominal or less than nominal, it remains (buck-boost function) within the specified input voltage range stably.If the output voltage is set higher by a certain percentage than the nominal value, the minimum input voltage at which the output voltage remains stable increases (does not decrease), by the same percentage.
